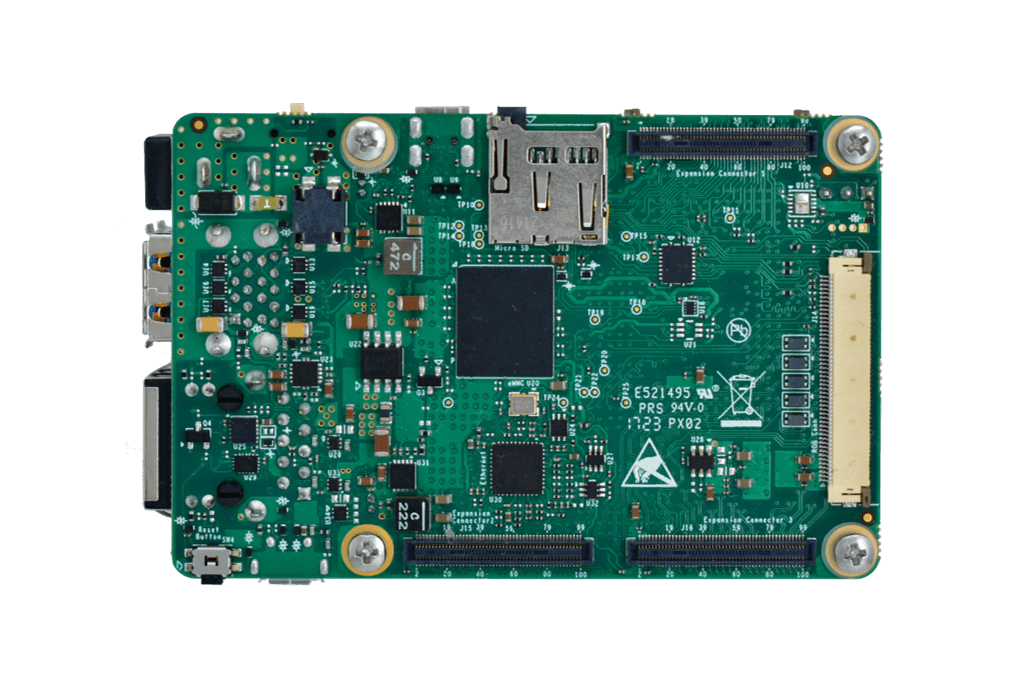

STM32P135 SBC Bottom View

STM32MP13x based SBC

STM32MP13x based SBC

iW-RainboW-G54S®

  • STM32MP13x Solo Core CPU with 32-bit ARMv7 Architecture
  • 512MB DDR3L (Expandable up to 1GB)
  • 4GB eMMC Flash (Expandable up to 128GB)
  • 16Kb EEPROM
  • 18-bit RGB display support
  • Compact Form Factor of 85mm x 56mm
  • 10+ years of Product Longevity Program
Categories: ,
DIGIKEY

On Module Feature

CPU
  • STM32MP135: 1 x Cortex-A7 (Available with and without Secure boot + Cryptography)
  • STM32MP133: 1 x Cortex-A7 (Available with and without Secure boot + Cryptography)
Memory & Storage
  • 512MB DDR3L (Expandable up to 1GB)
  • 4GB eMMC Flash (Expandable up to 128GB)
  • 16Kb EEPROM
  • Micro SD Slot

Network & Communication

  • Gigabit Ethernet x 1 (Single RJ45 Mag-jack Connector)
  • USB 2.0 OTG (micro–AB Receptacle Connector) x 1
  • USB Header x 1

Audio/Video Features

  • 18 Bit -RGB display connector with I2C touch

Miscellaneous Interfaces

  • Debug UART Header
  • RTC Battery Header
  • FAN Header

Expansion Connector Features

  • UART x 4 Ports (2 with flow control)
  • RGMII x 2 Ports
  • CAN x 2 Ports
  • SPI x 2 Ports
  • ADC x 2 Ports
  • I2S x 1 Port
  • I2C x 2  Ports
  • JTAG x 1 Port
  • GPIOs x 7

OS Support

  • Linux 6.1.28 (or higher)

General Features

Power Input

12V/2A

Form Factor

85mm X 56mm

Operating Temperature

-40°C to +85°C (Industrial)

Environment Specification

REACH & RoHS3 Compliant

OSM LGA MODULE

STM32MP135 Top view
Image STM32MP135 Bottom view
  • STM32MP135 Solo Core CPU with 32-bit ARMv7 Architecture
  • 512MB DDR3L Memory (Expandable up to 1GB)
  • eMMC 4GB (expandable up to 128GB)
  • Supports 2× RGMII
  • Support 18bit RGB
  • 10+ years of Product Longevity Program
  • OSM v1.1 Size – SF LGA Module
BUY NOW
EXPLORE

RELATED VIDEOS

Play Video about STM32MP13X System on Module banner

Increased Security and Performance at an Optimized price with the STM32MP13X System on Module

Play Video about OSM Video

Product Design with the OSM Standard SOM (Solderable System on Module)

Play Video about OSM SoM and SBC Banner

iWave Portfolio of OSM Solderable System on Modules & Single Board Computers
