Renesas RZ/V2L OSM System on Module

Renesas RZ/V2L OSM System on Module

iW-RainboW-G56M®

  • Renesas RZ/V2L MPU with 64-bit ARM®v8.2A, ARM®v8-M & 3D-Graphics Engine with Arm®Mali™ Architecture
  • Supports dual Cortex-A55 & Single Cortex-M33
  • Supports original DRP-AI for accelerating AI processing
  • Up to 2GB DDR4 Memory
  • Supports 2 × 1Gb Ethernet
  • 10+ years of Product Longevity Program
  • OSM v1.1 Size-LF LGA Module
Categories: ,

On Module Feature

CPU
  • RZ/V2L:
    • 2 x Arm®Cortex-A55@1.2GHz
    • 1 x Arm®Cortex-M33@200MHz
    • 1 x Arm®Mali™-G31@500MHz
    • DRP-AI Accelerator
Memory & Storage
  • DDR4 – 2GB (Expandable)*
  • eMMC NAND Flash – 16GB (Expandable)
  • QSPI Flash – 256Mb/Octa-SPI Flash – 512Mb (Optional)
  • EEPROM – 32Kb

OSM LGA Features

  • RGMII x 2
  • USB 2.0 OTG x 1
  • USB 2.0 Host x 1
  • SDIO x 1
  • UART x 2 (with flow control)
  • UART x 2 (w/o flow control)
  • I2C x 2
  • CAN x 2
  • SPI x 2
  • I2S x 2
  • ADC x 2
  • Debug UART x 1
  • PWM x 2
  • RGB Display Interface (18-bit) x 1
  • MIPI CSI (4-lane) x 1
  • MIPI DSI (4-lane) x 1
  • JTAG x 1
  • OSM GPIOs

OS Support:

Linux 5.10.201 (or higher)

General Features:

Power Input

5V, 2.5A through OSM LGA

Form Factor

45mm X 45mm

Operating Temperature

-40°C to +85°C (Industrial)

Environment Specification

REACH & RoHS3 Compliant

*Based on chip availability

RZ/V2L based SBC

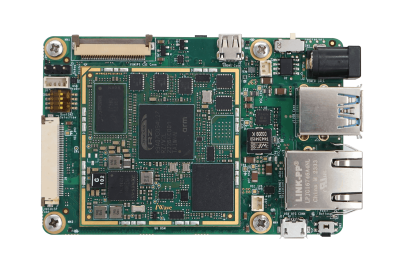

RZ V2L SBC Top View image

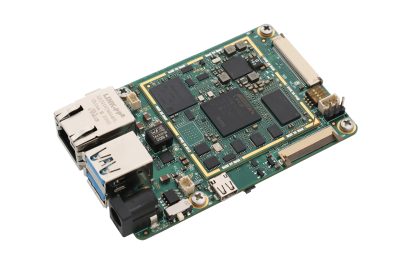

RZ SBC Bottom View image
  • 1 x Giga-bit Ethernet Jack
  • 1 x Micro-SD slot
  • 1 x Debug UART Header
  • 1 x MIPI CSI Connector
  • 1 x RGB display Connector
  • 1 x USB2.0 Micro OTG Connector
  • 1 x USB2.0 Host Header
  • 1 x RTC Battery Header
  • 3 x Expansion Connector with support for RGMII, UART, SPI, I2C, I2S, CAN, ADC, PWM, MIPI DSI, JTAG, GPIOs
