Start of Harmonized FPGA Module (HFM) Working Group for FPGA System on Modules

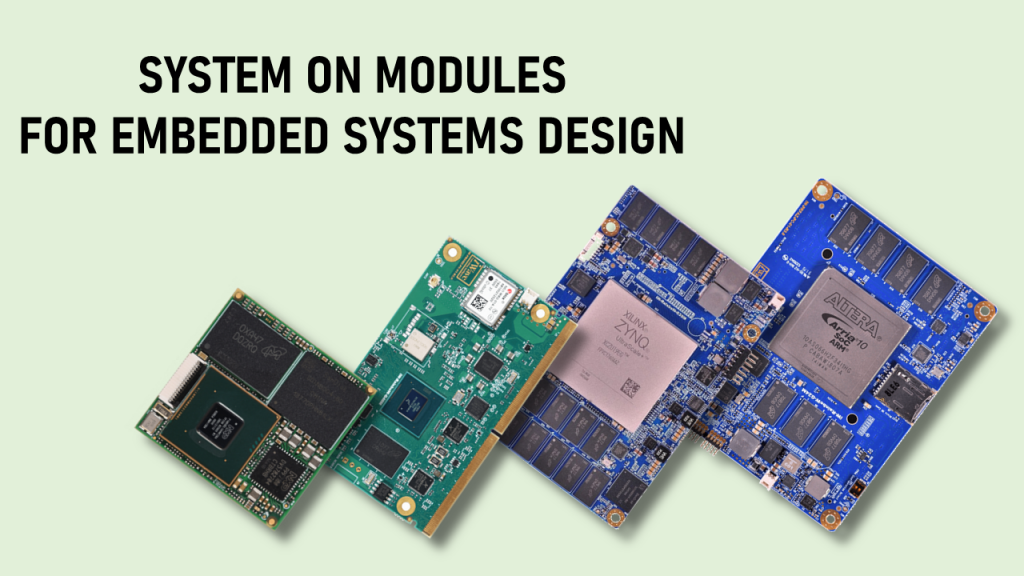

There has been an increased trend in the adoption of FPGA System on Modules (SOM) for product designs, and companies across the globe saw a need to build a standard for FPGA System on Modules.

An FPGA system on module approach offers significant advantages as this approach offloads several complexities involved in the design cycle, which includes complex power circuit design with the associated power sequencing, higher power density per area, complex IO bank handling, high-speed DDR memory design, thermal management, and compactness. The FPGA SoM approach further allows greater scalability for the end applications in terms of logic density, FPGA IOs, and a number of transceiver lanes.

In February 2024, The Standardization Group for Embedded Technologies e.V. (SGeT) announced the start of a new working group for the development of Harmonized FPGA Module™ (HFM) standard, with the founding meeting taking place on the 27^th of February, hosting 18 organizations from across the globe. In the founding meeting, Mr. Sheik Abdullah from iWave was elected as the chairman of the newly founded Standard Development Team and leading the efforts in the definition of the standard. The SDT is the sixth standard hosted under the umbrella of the Standardization Group for Embedded Technologies (SGET).

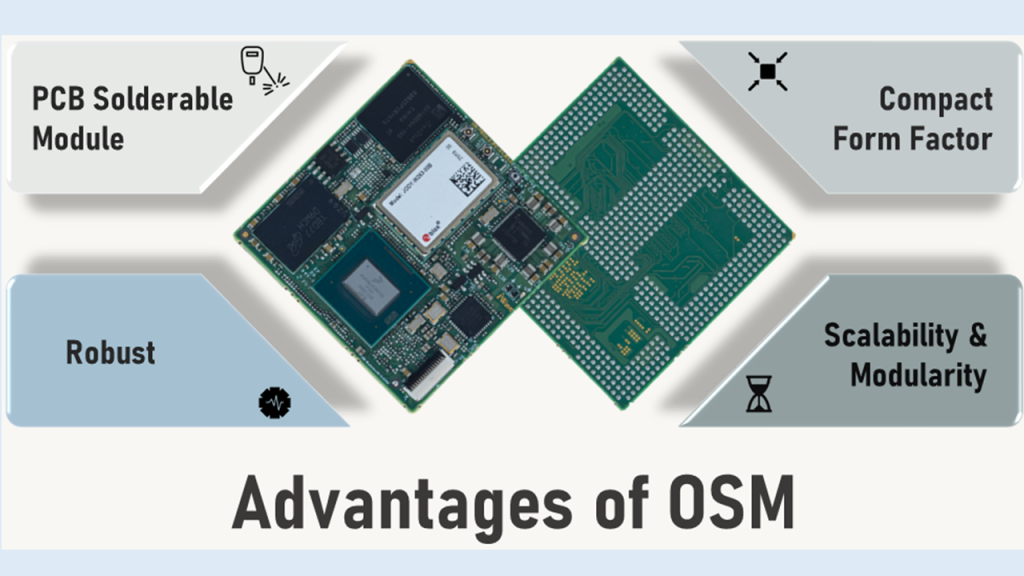

The Harmonized FPGA Module™ (HFM) Standard Development Team aims to develop a groundbreaking standard tailored for the FPGA and SoC-FPGA System-on-Module. The Team Mission Statement states, that the Standard Development Team aims to create a standard for solderable modules applicable to low to mid-range FPGAs and SoC-FPGAs and to develop a uniform approach to FPGA module design enabling free choice between solderable and connector-based modules, where the latter are more relevant to mid- to high-mid-range SoC FPGAs. The solderable and board-to-board SoM concepts both offer distinct advantages and address different sets of application requirements. At the same time, both approaches must address many identical design problems and share a lot of design decisions. That makes it justifiable to develop a common (“harmonized”) approach to these issues and to define a core of the SoM standard that will be shared between the two distinct physical implementations (solderable and connector-based). In the overlapping area, it is possible and beneficial to have both implementations available.

Through the Harmonized FPGA Module (HFM) initiative, we aspire to foster a collaborative ecosystem Where creativity flourishes, costs are optimized, and technological boundaries are transcended. Our mission is to empower the FPGA community to achieve unprecedented levels of efficiency, flexibility, and scalability, ushering in a new era of possibilities in embedded computing and beyond.

We encourage all companies working in the embedded technology space to contribute to this standardization effort and establish a new standard. If you would like to join this initiative, please send an email to info@sget.org.
