Get started with Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development Platform

Unpacking

Remove the Development Platform from box and place above the ESD free area. Use anti-static pad/mat with proper grounding to place the Development Platform. Also make sure that, below deliverables are received without any physical damage.

Development kit contains:

  • Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development Platform
  • 12V, 5A Power Supply
  • USB Debug cable
  • Allen key
  • Fan sink (Integrated with Development Platform)

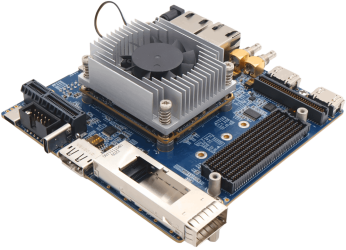

ZU5/4/3T products image
Agilex5 Debug USB Cable
Power adapter image
Allen key

Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development Platform

USB Debug Cable

12V, 5A Power Supply

Allen key

Safety Guidelines

Environmental Compliance

iW-RainboW-G36D-Zynq   Ultrascale+ M P S o C ( Z U 5 / 4 / 3 T / 3 / 2 / 1 ) S O M Development Platform is designed by using oHS and REACH compliant components and manufactured on lead-free production process.

ESD Protection

This development platform is ESD sensitive. Handle the product only in accordance with the installation instructions given in the manual. Therefore ESD precautions should be taken care during transport and handling. Must use a ESD ground strap or other grounded source before unpacking or handling the hardware.

Product Disposal

Check the local regulations for disposal of electronic products before disposing.

Get to know​

Zynq UltraScale MPSoC (ZU543T321) SoM-Top view

Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM – Top view

1. PMIC Programming Header

2. 5V Fan connector

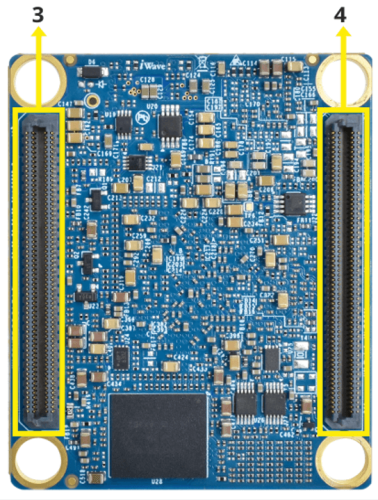

Zynq UltraScale MPSoC (ZU543T321) SoM-Bottom view image

Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM – Bottom view

3. Board to Board connector 2

4. Board to Board connector 1

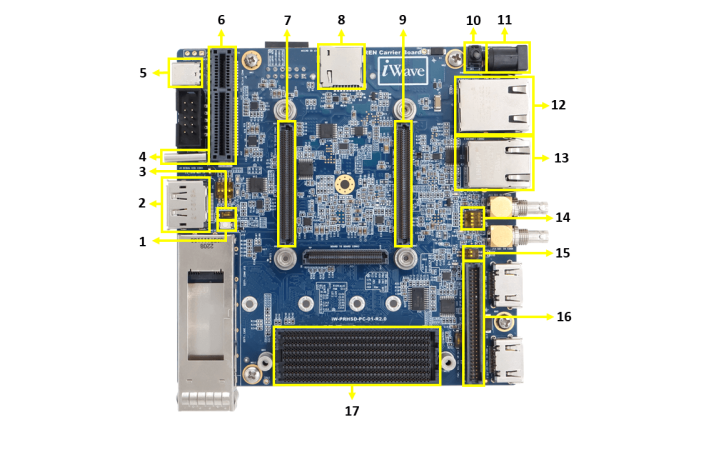

ZU5/4/3T Devkit image

Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development Platform – Top view

1. Reset Button
2. DisplayPort Connector
3. JTAG Selection switch
4. Debug UART & JTAG Type-C
Connector
5. USB3.0 & 2.0 Type-C Connector
6. PCIe x4 Connector
7. Board to Board Connector 1
8. MicroSD Connector

9. Board to Board Connector 2
10. Power ON/OFF Switch
11. Power IN Connector
12. Ethernet Connector 1
13. Ethernet Connector 2
14. Boot Mode Selection Switch
15. DIP Switch
16. 60 Pin GPIO Header
17. FMC+ Connector

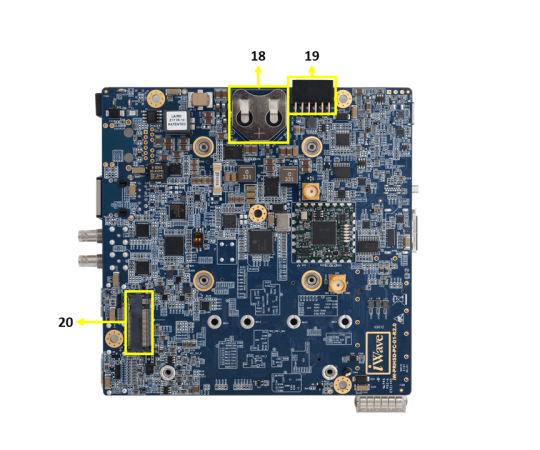

ZU543T321 SoM DevKit - Bottom view

Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development Platform – Bottom view

18. RTC Coin Cell Holder
19. PMOD Connector

20. M.2 SATA Connector

Note: Not all of the connectors mentioned above are compatible with the Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM.  Refer to the Development Kit’s datasheet for information on supported connectors and their detailed descriptions.

Download FTP Contents

All the technical resources of iW-RainboW-G36D Zynq Ultrascale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development platform is available in iWave FTP server.

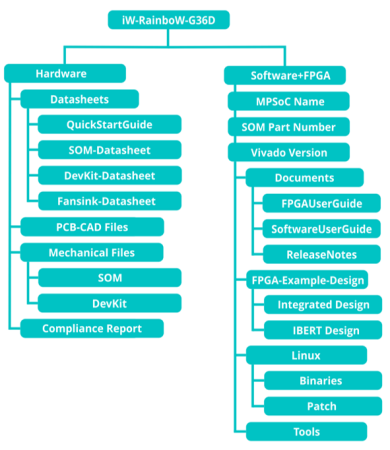

FTP Folder structure

FTP Folder structure image

For FTP Credentials, Contact : mktg@iwave-global.com

Boot Switch Setting

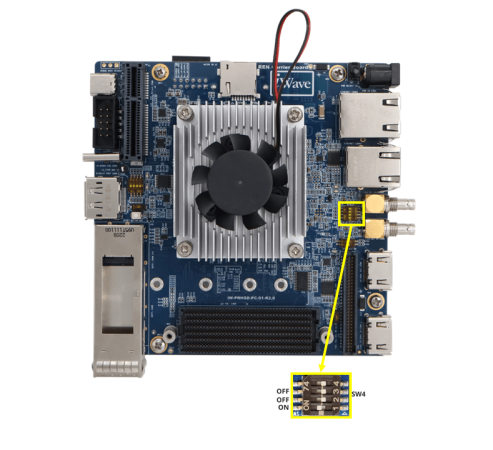

Make sure that On-SOM Boot Mode Switch (SW4) is set for eMMC boot as shown in below image.

ZU5/4/3T Boot Switch image

SW4-Boot selection Switch

ZU543T Switch Table

Note: Please make sure SW4.4 bit of Boot Mode Selection Switch Stays OFF (Logic High) always.

Debug Port Setting

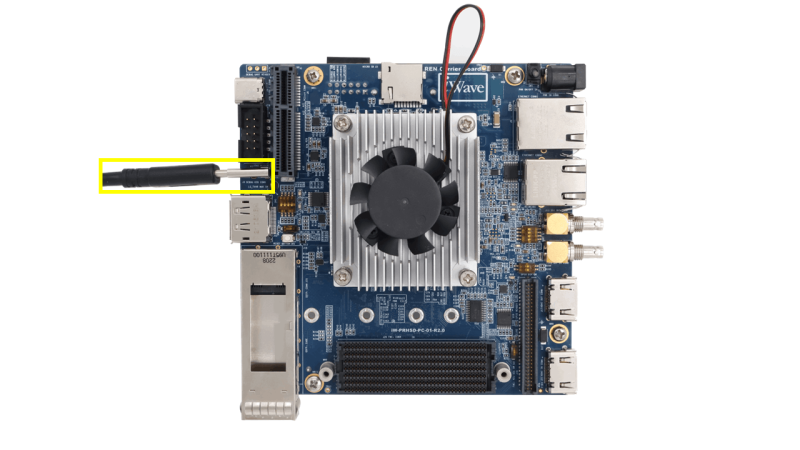

The Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development Platform has a built-in JTAG emulator. Both JTAG and Debug UART can be accessed via a single USB-C connector (J8).

Connect Type A end of USB cable to PC and Type-C end of USB cable to Development platform’s Debug USB Type-C Connector (J8) as shown below.

ZU5/4/3T Debug port image

Install the driver for Debug Port in Host PC/Laptop using the
below link.
https://ftdichip.com/products/ft232rq/

How to configure

Use one of the terminal application depending on the operating system of the host machine:

JTAG Connection

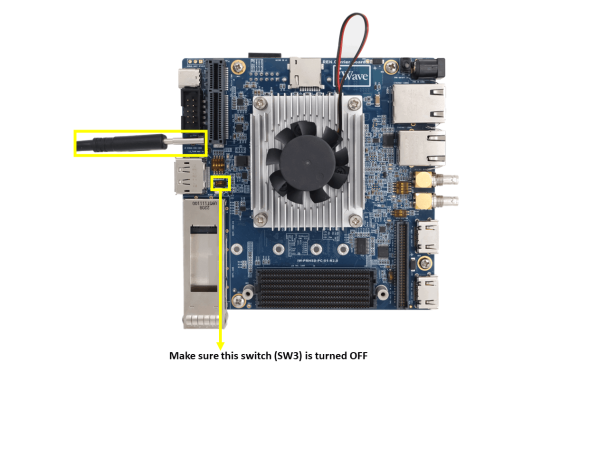

iW-RainboW-G36D Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1) SOM Development platform Support JTAG interface through Debug and JTAG Type-C Connector (J8) in Carrier Board for MPSoC/FPGA Programming and debugging. JTAG-SMT4 Programming module in carrier board supports both JTAG and Debug UART functionality.

ZU5/4/3T JTAG connection image

Powering ON

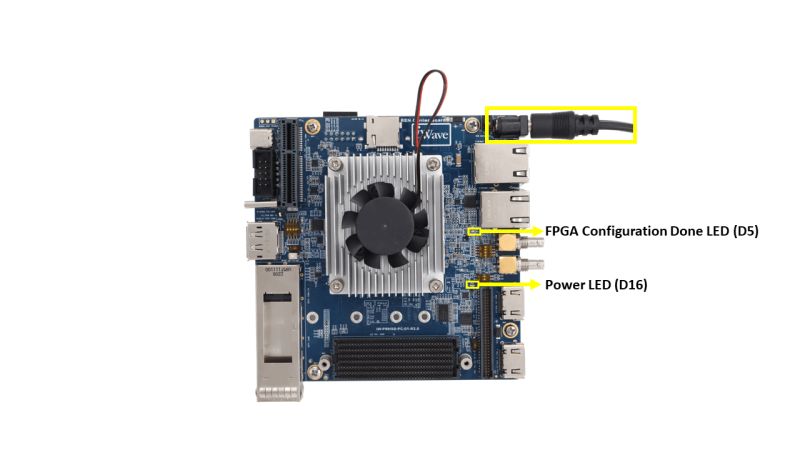

Connect the 12V power supply plug to the power connector (J2) of the Development platform as shown below and switch (J2) ON the power supply. Once power is applied to the Development platform, the power LEDs in Zynq UltraScale+ MPSoC(ZU5/4/3T/3/2/1) SOM and REN Carrier Board will glow as shown in the below image.

ZU5/4/3T powering ON image

Warning:

  • Do not try to connect any other Power Supply other than supplied along with the Development Platform.
  • Do not plug or remove the Zynq UltraScale+ MPSoC (ZU5/4/3T/3/2/1)SOM from carrier board with live power.
  • Contact iWave, if power LEDs are not glowing or PS Error status LEDs are glowing.

Boot Screen

User must go through “Software User Guide” and get familiar with software section of iW-RainboW-G36M-Zynq-UltraScale+MPSoC-SOM

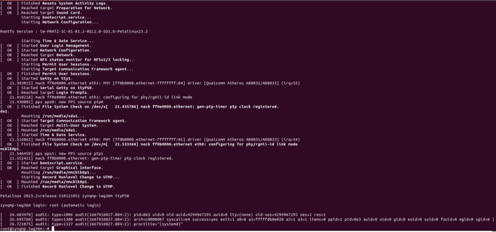

Once power is applied to the Development Platform as explained in the previous section, boot messages being displayed in the debug terminal of the PC/Laptop which is connected to the Development platform. Press any key in terminal immediately to see the command prompt of the Boot loader or wait until OS boots.

ZU5/4/3T Command Prompt image

Command Prompt (Linux)

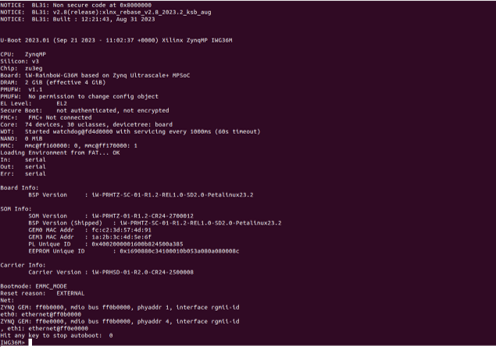

Command Prompt (Uboot) image

Command Prompt (Uboot)
